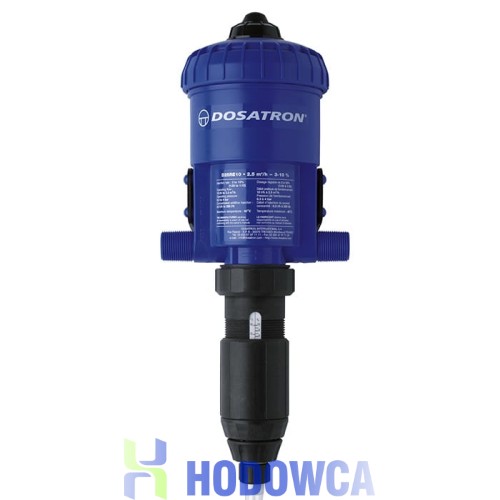

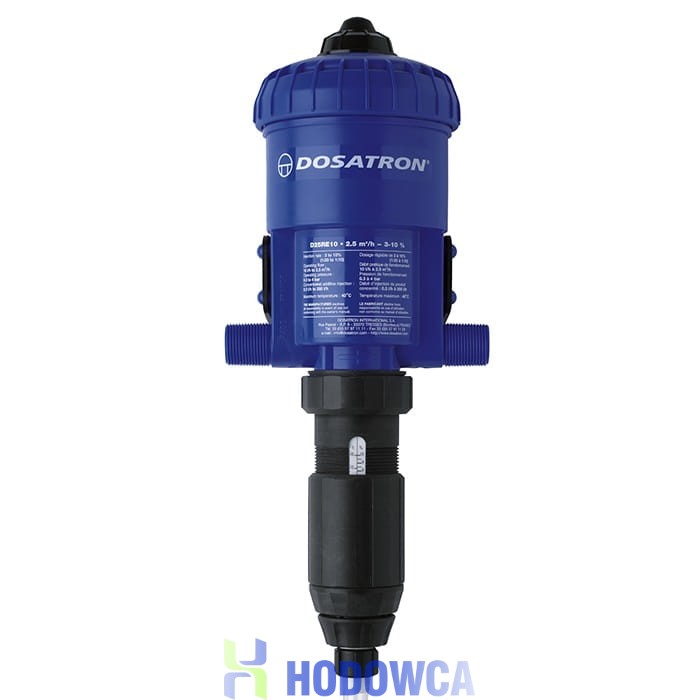

Dosatron D25Re10 3 - 10%
4.33333
Description
DOSATRON D25 RE10 VF dosing pump 3 - 10%:
Works under pressure, without electricity. The water flowing through the dispenser drives the pump itself, at a pressure of 0.30 bar. Mixing of the preparation takes place in a special chamber to which air cannot reach. The dispenser is equipped with an adjustment ring thanks to which the concentration level of the working liquid can be set in the range from 3 to 10%.
- precisely takes the set dose of the agent in a certain proportion and mixed with water
- provides a solution with a given concentration, regardless of the flow rate, in the concentration range from 3 - 10%,
- works without electricity
- water flow rate: from 10 l / h to 2500 l / h
- water pressure: from 0.3 to 6 bar
- dosing value: from 3 to 10%
- intended for substances with a pH of 1 - 9
- connection: 3/4 "male thread
- self-suction: max. Suction height of 4 m
- intended use: animal production, irrigation, industry, car washes
The offer applies to the complete original Dosatron product - with a hose and a filter for dosed substances.
In order to extend the life of the device, we recommend the use of an additional water filter in the water line before the dispenser.
